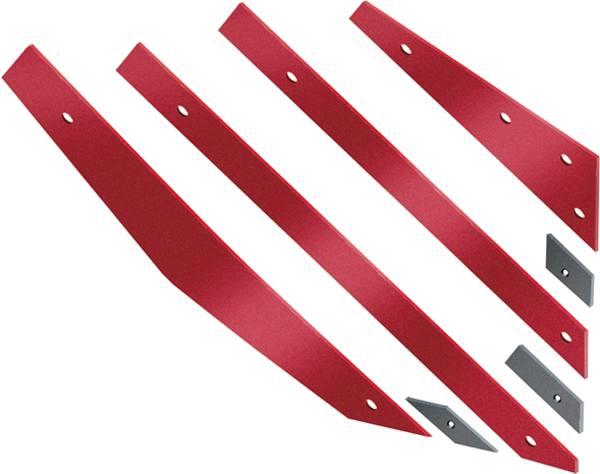

Spare parts for Kverneland ploughs 1726
Main product specifications
| Original Ref. | Ref. | C | Grs. | B | A | B | E | M |
|---|---|---|---|---|---|---|---|---|
| KK083211 | 1726-1 D | 12 | 6700 | 300 | 880 | 110 | 1199B | M12 |
| KK083221 | 1726-1 I | 12 | 6700 | 300 | 880 | 110 | 1199B | M12 |
| KK083212 | 1726-2 D | 12 | 5170 | 300 | 956 | 60 | 1199B | M12 |
| KK083222 | 1726-2 I | 12 | 5170 | 300 | 956 | 60 | 1199B | M12 |
| KK083213 | 1726-3 D | 12 | 4270 | 300 | 785 | 60 | 1199B | M12 |
| KK083223 | 1726-3 I | 12 | 4270 | 300 | 785 | 60 | 1199B | M12 |
| KK083214 | 1726-4 D | 12 | 3630 | 300 | 535 | 115 | 1199B | M12 |
| KK083224 | 1726-4 I | 12 | 3630 | 300 | 535 | 115 | 1199B | M12 |
| KK083215 | 1726P-12 | 300 | 2000 | |||||
| KK083216 | 1726P-23 | 300 | 2000 | |||||
| KK083217 | 1726P-34 | 300 | 2000 |
D D = Right (Ref)
I I = Left (Ref)
1726P-12 / 23/ 34 is delivered in indiviual bags with the correspondant polyethylene piece along with M10x30 8.8 ZN bolt and M.10 nut.
