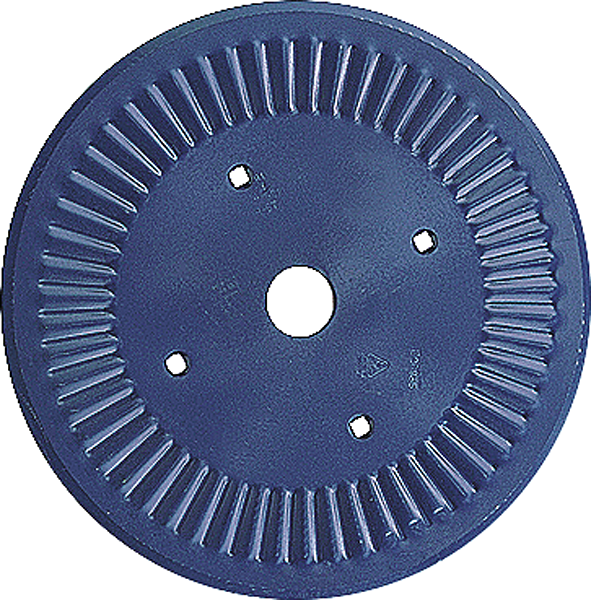

Discs with 55 Waves with flat section
Flat discs of 20" have 55 Waves and discs of 22" have 60 Waves. Both have a flat end zone. This design achieves good penetration and cutting, as well as medium tillage suitable for dry, wet, sandy or heavy soil. The recommended speed is medium to high.
Main product specifications

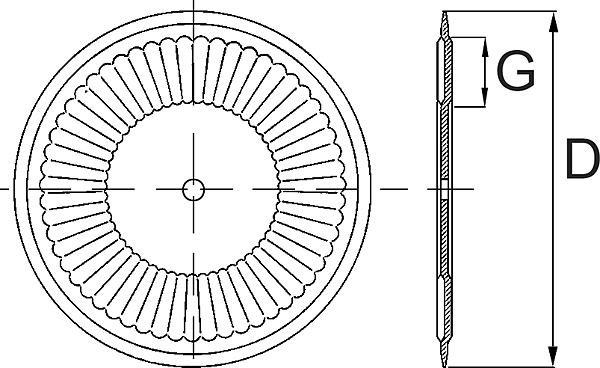

| ø " | ø mm | C | Grs. | B | G | Nº waves | D |
|---|---|---|---|---|---|---|---|
| 20" | 508 mm | 4,5 | 6700 | 50 | 70 | 55 | 16 |
| 20" | 508 mm | 5 | 7430 | 50 | 70 | 55 | 16 |
| 22" | 582 mm | 4,5 | 8860 | 50 | 89 | 60 | 14 |
| 22" | 582 mm | 5 | 9820 | 50 | 89 | 60 | 14 |
| 22" | 582 mm | 6 | 11170 | 50 | 89 | 60 | 14 |
D Made-to-order products.
Good cut and penetration. Minimum tilling action, ideal for variable soil conditions.
