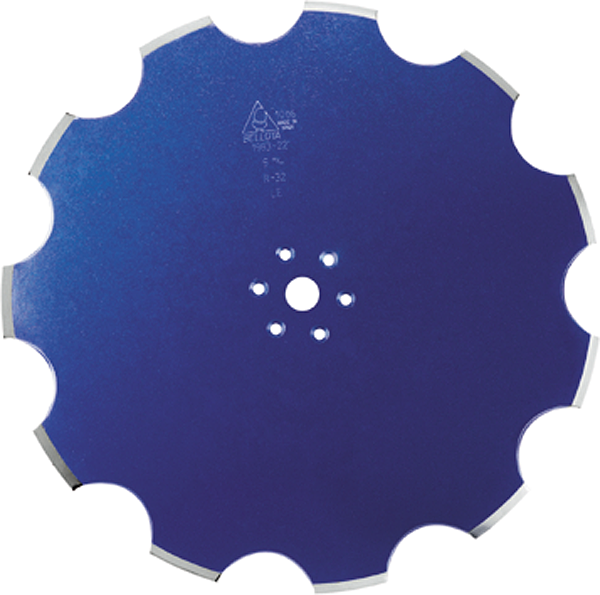

Notched flat discs
Bellota notched plain discs are manufactured with special Borodur steel with integral tempering that prevents deformation and breakage. The notches are ideally sized to provide good penetration whilst also ensuring precise cutting even with tough residues.
Main product specifications
| ø " | ø mm | C | Grs. | B | D |
|---|---|---|---|---|---|
| 16" | 406 mm | 3 | 2600 | 50 | 16 |
| 16" | 406 mm | 3,5 | 3050 | 50 | 16 |
| 16" | 406 mm | 4 | 3490 | 50 | 16 |
| 16" | 406 mm | 5 | 4340 | 50 | 16 |
| 17" | 433 mm | 4 | 3700 | 50 | 16 |
| 17" | 433 mm | 4,5 | 4180 | 50 | 16 |
| 17,5" | 450 mm | 4 | 3840 | 50 | 16 |
| 18" | 457 mm | 3,5 | 3590 | 50 | 16 |
| 18" | 457 mm | 4 | 4110 | 50 | 16 |
| 18" | 457 mm | 4,5 | 4620 | 50 | 16 |
| 18" | 457 mm | 5 | 5120 | 50 | 16 |
| 18" | 457 mm | 6 | 6100 | 50 | 16 |
| 18" | 457 mm | 7 | 7080 | 50 | 16 |
| 19" | 470 mm | 5 | 5170 | 50 | 16 |
| 20" | 508 mm | 3,5 | 4700 | 50 | 16 |
| 20" | 508 mm | 4 | 5370 | 50 | 16 |
| 20" | 508 mm | 4,5 | 6020 | 50 | 16 |
| 20" | 508 mm | 5 | 6660 | 50 | 16 |
| 20" | 508 mm | 6 | 7920 | 50 | 16 |
| 22" | 582 mm | 4 | 7170 | 50 | 14 |
| 22" | 582 mm | 4,5 | 8050 | 50 | 14 |
| 22" | 582 mm | 5 | 8910 | 50 | 14 |
| 22" | 582 mm | 6 | 10610 | 50 | 14 |
| 24" | 610 mm | 4,5 | 8860 | 50 | 14 |
| 24" | 610 mm | 5 | 9820 | 50 | 14 |
| 24" | 610 mm | 6 | 11700 | 50 | 14 |
| 25" | 635 mm | 5 | 10520 | 50 | 12 |
| 25" | 635 mm | 6 | 12710 | 50 | 12 |
| 26" | 660 mm | 6 | 14500 | 25 | 12 |
| 26" | 660 mm | 8 | 19500 | 25 | 12 |
| 28" | 711 mm | 6 | 16800 | 25 | 12 |
| 28" | 711 mm | 8 | 22340 | 25 | 12 |
D Made-to-order products.
Good penetration and cut with high residues. Minimum tilling action
Notches are the standard Bellota notch, but these can be made according to the customer’s requirement.
