Flat plain discs

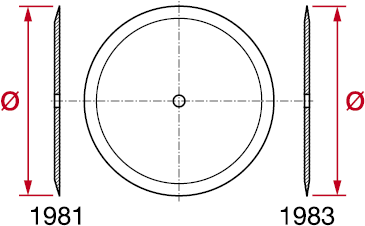

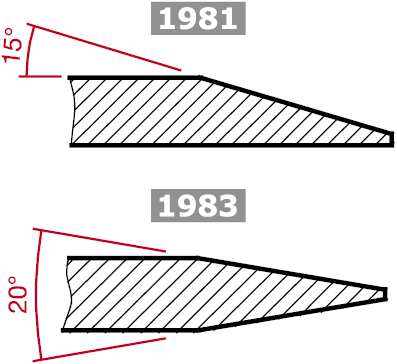

Bellota manufactures to order any type of plain flat disc for Seeders or for other uses. Made from Borodur boron steel, from 10" diameter up to 32" and available with two different bevel types: single bevel and double bevel. These discs have very good penetration and cutting performance and carry out minimum tillage.
Main product specifications
| ø " | ø mm | C | Grs. | B | D |
|---|---|---|---|---|---|
| 10" | 255 mm | 2,5 | 920 | 50 | 38 |
| 10" | 255 mm | 3,5 | 1220 | 50 | 48 |
| 11" | 282 mm | 3 | 1350 | 50 | 36 |
| 12" | 305 mm | 2 | 1080 | 50 | 26 |
| 12" | 305 mm | 2,5 | 1350 | 50 | 28 |
| 12" | 305 mm | 3 | 1780 | 50 | 53 |
| 12" | 305 mm | 4 | 2000 | 50 | 36 |
| 13" | 333 mm | 2,5 | 1620 | 50 | 26 |
| 13" | 333 mm | 3 | 1810 | 50 | 44 |
| 13" | 333 mm | 4 | 2460 | 50 | 22 |
| 13,5" | 343 mm | 3 | 2000 | 50 | 44 |
| 13,5" | 343 mm | 4 | 2700 | 50 | 36 |
| 14" | 351 mm | 3 | 2130 | 50 | 36 |
| 14" | 351 mm | 3,5 | 2500 | 50 | 33 |
| 14" | 351 mm | 4 | 2860 | 50 | 36 |
| 14" | 351 mm | 5 | 3560 | 50 | 48 |
| 15" | 381 mm | 3 | 2500 | 50 | 29 |
| 15" | 381 mm | 3,5 | 2870 | 50 | 31 |
| 15" | 381 mm | 4 | 3280 | 50 | 33 |
| 15" | 381 mm | 5 | 4150 | 50 | 33 |
| 15,5" | 394 mm | 4 | 3350 | 50 | 18 |
| 15,5" | 394 mm | 5 | 4350 | 50 | 32 |
| 16" | 406 mm | 3 | 2850 | 50 | 16 |
| 16" | 406 mm | 3,5 | 3340 | 50 | 16 |
| 16" | 406 mm | 4 | 3830 | 50 | 16 |
| 16" | 406 mm | 4,5 | 4300 | 50 | 22 |
| 16" | 406 mm | 5 | 4780 | 50 | 16 |
| 17" | 433 mm | 4 | 4250 | 50 | 16 |
| 17" | 433 mm | 4,5 | 4790 | 50 | 16 |
| 17,5" | 450 mm | 4 | 4400 | 50 | 16 |
| 18" | 457 mm | 3,5 | 4080 | 50 | 16 |
| 18" | 457 mm | 4 | 4680 | 50 | 16 |
| 18" | 457 mm | 4,5 | 5270 | 50 | 16 |
| 18" | 457 mm | 5 | 5840 | 50 | 16 |
| 18" | 457 mm | 6 | 6970 | 50 | 16 |
| 18" | 457 mm | 7 | 8090 | 50 | 16 |
| 19" | 470 mm | 5 | 5900 | 50 | 16 |
| 20" | 508 mm | 3,5 | 5230 | 50 | 16 |
| 20" | 508 mm | 4 | 5970 | 50 | 16 |
| 20" | 508 mm | 4,5 | 6700 | 50 | 16 |
| 20" | 508 mm | 5 | 7430 | 50 | 16 |
| 20" | 508 mm | 6 | 8840 | 50 | 16 |
| 22" | 582 mm | 4 | 7890 | 50 | 14 |
| 22" | 582 mm | 4,5 | 8860 | 50 | 14 |
| 22" | 582 mm | 5 | 9820 | 50 | 14 |
| 22" | 582 mm | 6 | 11700 | 50 | 14 |
| 24" | 610 mm | 4,5 | 9750 | 50 | 14 |
| 24" | 610 mm | 5 | 10810 | 50 | 14 |
| 24" | 610 mm | 6 | 12890 | 50 | 14 |
| 25" | 635 mm | 5 | 11580 | 50 | 12 |
| 25" | 635 mm | 6 | 13990 | 50 | 12 |
| 26" | 660 mm | 6 | 16000 | 25 | 12 |
| 26" | 660 mm | 8 | 21500 | 25 | 12 |
| 28" | 711 mm | 6 | 16000 | 25 | 12 |
| 28" | 711 mm | 8 | 21500 | 25 | 12 |
| 30" | 762 mm | 8 | 31000 | 20 | 10 |
| 30" | 762 mm | 10 | 38000 | 20 | 10 |
| 32" | 813 mm | 8 | 33500 | 20 | 10 |
| 32" | 813 mm | 10 | 41300 | 20 | 10 |
| 36" | 914 mm | 12 | 65000 | 20 | 10 |
D Made-to-order products.
Consult for other diameter and thickness availability
Good cut and penetration. Minimum tilling action.
