Disc with Tangential Waves 1992

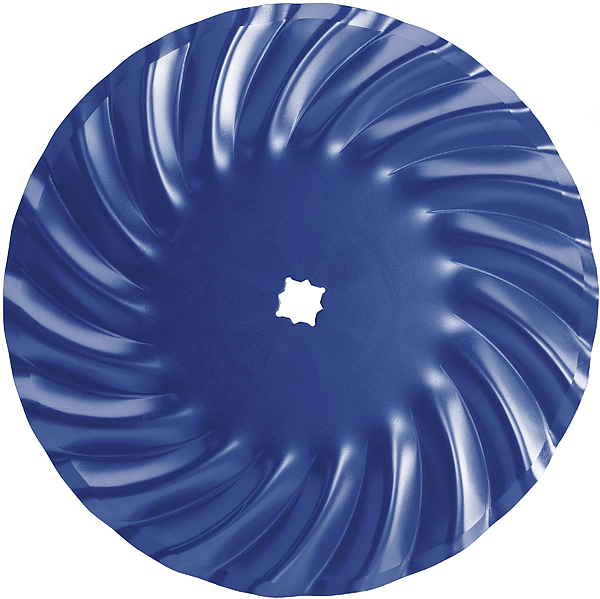

Flat disc with 18 tangential waves of 28 mm height. This disc is for vertical tillage, that is, without mixing the different soil layers.
Main product specifications

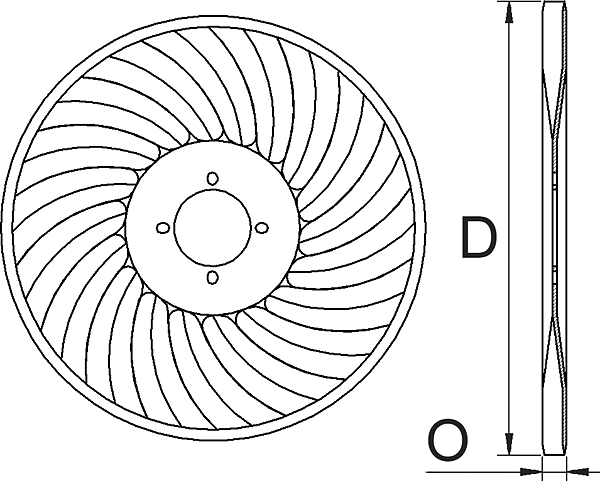

| ø " | ø mm | C | Grs. | B | Nº waves | O | Flat Centre | D |
|---|---|---|---|---|---|---|---|---|
| 17" | 441 | 6 | 6350 | 50 | 18 | 24 | 230 | 16 |
| 18" | 458 | 6 | 7060 | 50 | 18 | 28,5 | 230 | 16 |
| 20" | 511 | 6 | 9700 | 50 | 18 | 28,5 | 230 | 16 |
| 22" | 565 | 6 | 10450 | 50 | 18 | 28,5 | 230 | 14 |
| 24" | 618 | 6 | 13540 | 50 | 18 | 28,5 | 230 | 14 |
D Made-to-order products.
Vertical tillage disc, that is, to work the soil without turning it over, to avoid mixing the various layers of soil.
A good cut and an ideal mix of the organic residue is achieved, protecting the soil from erosion.
But under the soil you obtain a soil well prepared for planting, completely oxygenated and aerated to allow roots to grow in perfect conditions.
