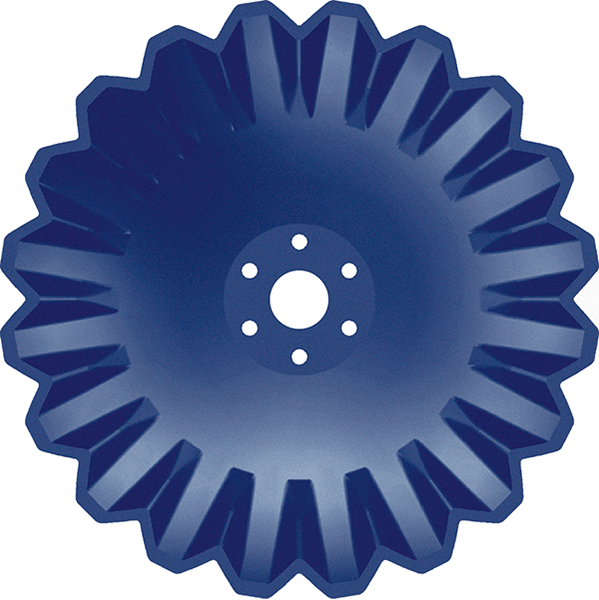

Concave disc with 20 Waves and super-sharp edge 1958
Concave disc with 20 Waves of 8.5mm height with an extra sharp edge. Recommended for soft soils and, as it cuts residue perfectly, it achieves deep penetration into the ground. As these ultra-sharp edges wear down, it becomes more aggressive, thus ensuring a longer service life.Manufactured in BORODUR boron steel exclusive to Bellota.

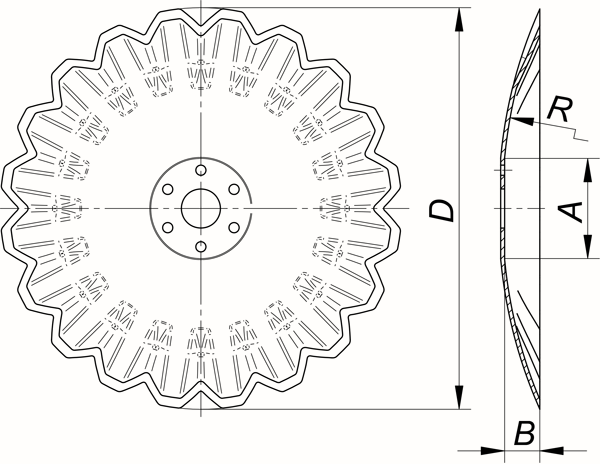

Main product specifications
| ø " | ø mm | C | A | B | R mm | Nº waves | O | Grs. | B | D |
|---|---|---|---|---|---|---|---|---|---|---|
| 18" | 462 | 5 | 130 | 35,5 | 610 | 20 | 8,5 | 5100 | 50 | 150 |
| 20" | 514 | 5 | 130 | 45 | 610 | 20 | 8,5 | 7500 | 50 | 150 |
| 20" | 514 | 6 | 130 | 45 | 610 | 20 | 8,5 | 8000 | 50 | 150 |
| 22" | 568 | 5 | 130 | 58 | 610 | 20 | 8,5 | 8900 | 50 | 150 |
| 22" | 568 | 6 | 130 | 58 | 610 | 20 | 8,5 | 10000 | 50 | 150 |
D Made-to-order products.
These blades are for Vertical Tillage and are recommended for soft soils as it cuts waste perfectly and it penetrates deeply into the ground.
Furthermore, as the blade gradually wears down, it becomes more aggressive, thus guaranteeing a longer working life for the disc.
