Rapid disc harrow disc support attached to the frame from below

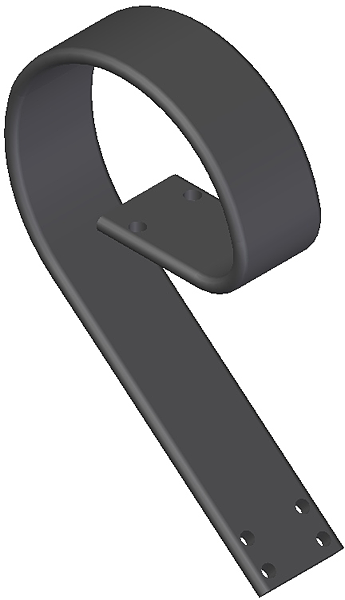

Quick harrow arm in 90x14mm profile that attaches to 60x60 or 70x70 frames, fixed directly to the frame from below. The arm requires the addition of the ambidextrous quick harrow bracket 2512 SB with 19º inclination or the 2512SB R bracket which is straight for vertical tillage operations.
Main product specifications
| Ref. | Chasis | Grs. | G | A | B | C | x1 | x2 | Q | M | B |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2512 BRG A CA1 | 60X60 / 70X70 | 9000 | 90X14 | 273 | 429 | 264 | 60 | 30 | 40º | M12 (4) | 100 |
Fixes to frame with 2 bolts of 14 mm metrics and 60 mm of distance between the two holes.
Can be assembled using the 2512-SB (ambidextrous and angled) and 2512-SB R (Straight) supports
Quality 12.9 bolts should be used.
