Spiral tines 20x20

Spiral tines 20x20

Spiral tines or double coil tines of 20 x 20 mm. Manufactured in a special steel with high elasticity and recovery power of the initial geometry. Manufacturing process that prevents the formation and propagation of micro-cracks, reducing the risk of breakage. Epoxy paint with resistance to UV ray degradation and prevents oxidation.

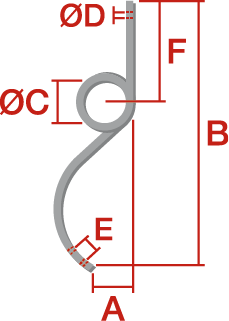

Main product specifications

Ref.	G	A	B	C	D	E	G	M	Grs.	B	F	D
2480 D	20x20	370	395	92	13	45	63	M10	4400	200	12480
2480 I	20x20	370	395	92	13	45	63	M10	4400	200	12480
2480-A 14 D	20x20	370	395	92	15	45	63	M10	4400	200	12480-5050A	100
2480-A 14 I	20x20	370	395	92	15	45	63	M10	4400	200	12480-5050A	100
2492-D	20X20	277	384	96	15	45	60	M12	4400	200	12480	100
2492-I	20X20	277	384	96	15	45	60	M12	4400	200	12480	100

D Made-to-order products.

D D = Right (Ref)

I I = Left (Ref)

Models specially designed for vineyard

Clamps. See page

Fits with 1538 See page, 1547 C2A See page, 1550-A See page, 1553 C2A See page
