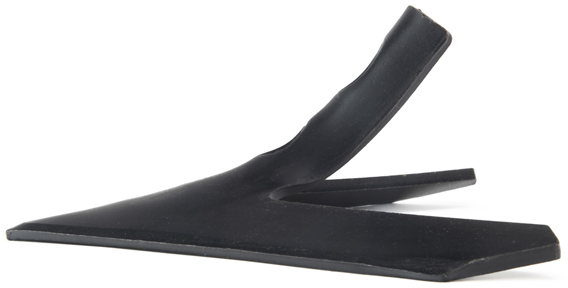

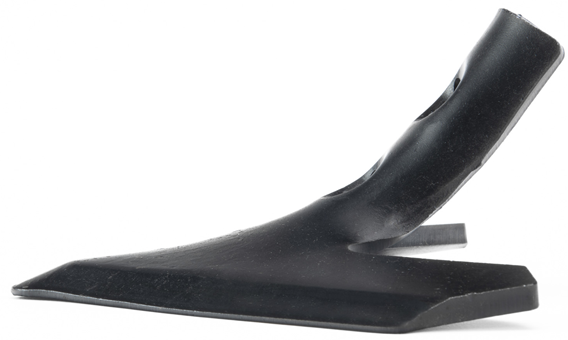

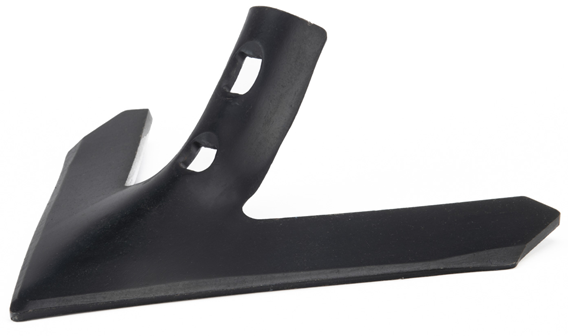

Sweep 15037 for Cultivator Tine

Cultivator for Vibrocultivator tines of 45x12 and 65x12mm as well as for Vibro Tine Type VTH. The 180mm working width and 8mm thickness model is adaptable to Kongskilde 101000553 Vibro Till. Also available in working widths of 120, 200, 210, 250 and 270mm. Hole spacing of 40mm or slotted hole of 45mm depending on the Arm. All models are offered in 12 metric.

Main product specifications

Ref.	Original Ref.	C	Grs.	A	B	C	D	B	E	M	D
15037 CA 120 E6		6	620	120	156	40	96	1000	1199O	M12	100
15037 CA1 180 E6		6	800	180	156	40-45	96	400	1199O	M12	100
15037 CA 180 E8	101000553	8	1150	180	156	40	96	400	1199O	M12	100
15037 CA 270 E6		6	1100	270	156	40	96	400	1199O	M12
15037 CA1 200 E6		6	880	200	156	40-45	96	400	1199O	M12	100
15037 CA1 210 E6		6	925	210	156	40-45	96	400	1199O	M12
15037 CA1 250 E6		6	1000	250	156	40-45	96	400	1199O	M12	100
