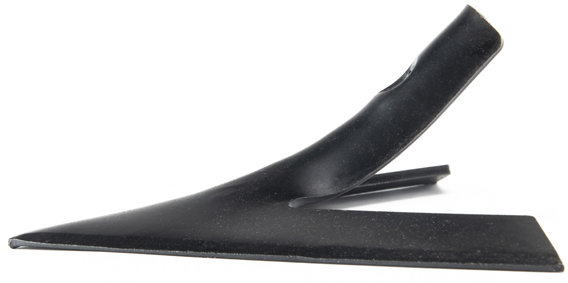

Swallow Point 1552 for Cultivator Tines

Swallow Point 1552 for Cultivator Tines

Swallow Point 1552 for Vibrocultivator Tine of 32x10 and 32x12mm in 4 mm thickness and working widths of 135, 150, 175, 200 and 250 mm. All are fitted with oval head bolt, square neck and DIN985 safety nut. Manufactured in BORODUR boron steel, exclusive to Bellota.

Main product specifications

Ref.	C	Grs.	A	B	D	B	E	M	D
1552 0	4	280	135	158	77	1000	1199O	M10
1552 A	4	310	150	158	77	800	1199O	M10
1552 B	4	365	175	158	77	700	1199O	M10
1552 C	4	420	200	158	77	600	1199O	M10
1552 D	4	550	250	158	77	500	1199O	M10	100

D Made-to-order products.

D D = Right (Ref)

Fits with 2470 32x10 See page, 2472 32x12 See page

Vibrocultivator tine 2470 32x10mm

Vibrocultivator tine 2470 32x10mm

Vibrocultivator tine 2472 in 32x12mm

Vibrocultivator tine 2472 in 32x12mm

Fits in S-tine

Ref.	2470	2472
1552-0/A/B/C	M10x40TS	M10x40TS
