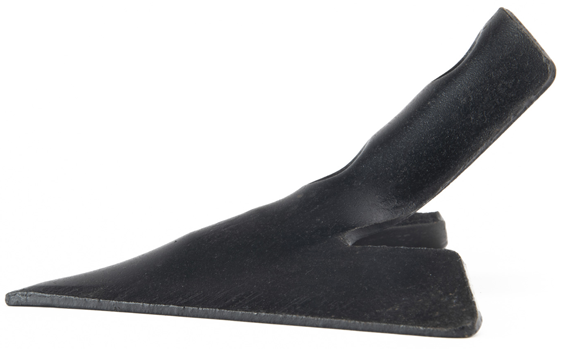

Swallow Point 1547 for Vibrocultivator Tine
Swallow Point for Vibrocultivator Tine of 45x12 and 65x12 mm available in both metric 10 and 12 and in 195, 200, 215 and 250 mm working width. This cultivator point is also available in Duratop, with 11 tungsten plates and reinforced neck in 14 mm thickness.
Main product specifications
| Ref. | C | Grs. | A | B | C | D | B | E | M | D |
|---|---|---|---|---|---|---|---|---|---|---|
| 1547 S C2A | 5 | 550 | 195 | 140 | 45 | 85 | 500 | 1199O | M10 | |
| 1547 S C2A M12 | 5 | 550 | 195 | 140 | 45 | 85 | 500 | 1199O | M12 | 100 |
| 1547 S C2A 215 | 5 | 600 | 215 | 140 | 45 | 85 | 500 | 1199O | M10 | 100 |
| 1547 S C2A 250 | 5 | 550 | 250 | 140 | 45 | 85 | 250 | 1199O | M10 | 100 |
| 1547 S C2A 250 M12 | 5 | 550 | 250 | 140 | 45 | 85 | 250 | 1199O | M12 | 100 |
| 1547 S C2A 6 | 6 | 550 | 195 | 140 | 45 | 85 | 500 | 1199O | M10 |
D Made-to-order products.

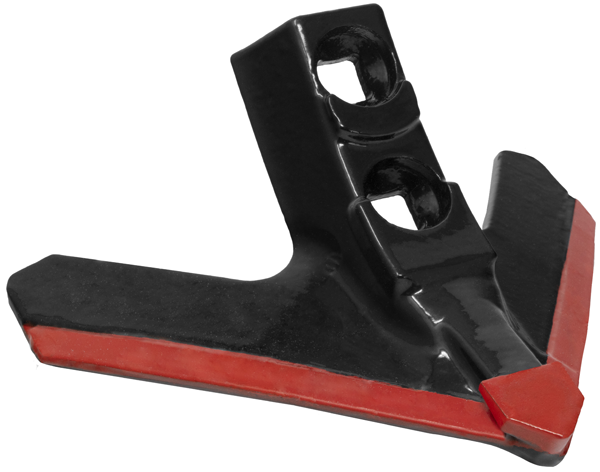

1547 S C2N CP: 11 tungsten carbide plates and reinforced neck
Fits in S-tine
| Ref. | 2476-C2AA10 | 2476 C2A / A14 C2A | 2488-B C2A/ A14 C2A |
|---|---|---|---|
| 1547 S C2A / CP | M10x45TCB | ||
| 1547 S C2A M12 | M12x45TCB | M12x60TCB |
