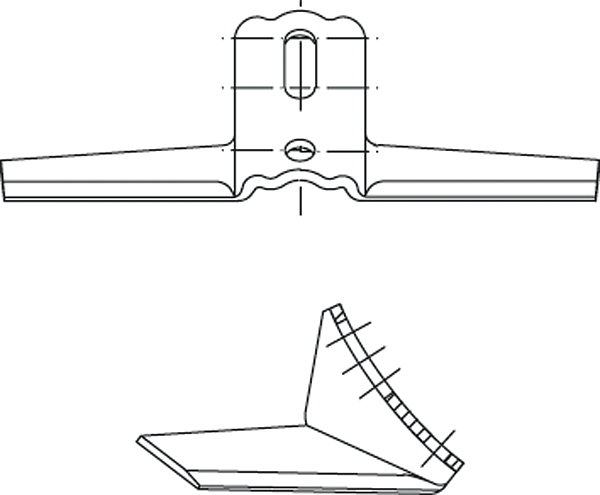

Fin 1507

308 mm wide wing available in 6 and 8 mm thickness. It differs from wing 1501 in the slotted hole. Fits with left-hand or right-hand reversible point 1501 with M12 metric on Ransome shanks of 25x25, 27x27, 30x30, 32x32 or 53x53 mm. On chisel shanks, fits profiles of 45x20, 40x30, 45x20, 50x25, 50x30, 40x40, 25x25, 30x30 mm. Manufactured in Borodur boron steel.

Main product specifications

Ref. C Grs. A B C D A B M
1507 6 1200 308 155 45-75 95 12 360 M12
1507-8 8 1600 308 155 45-75 95 12 360 M12

Fits with chisel tine See page, 2481 See page, 2483 See page, 2484 See page, 2485 See page, 2486 See page

Fits in double coil tine

Ref.24812483248424852486
1507 + 1501M12x60M12x60M12x70M12x70M12x70

Fits in Chisel tine

Ref.2461-B2461-C2461-CL2461-D2462-A2462-B2464-A2464-AL24662467
1507 + 1501M12x60M12x60M12x60M12x60M12x60M12x60M12x70M12x70M12x60M12x60
