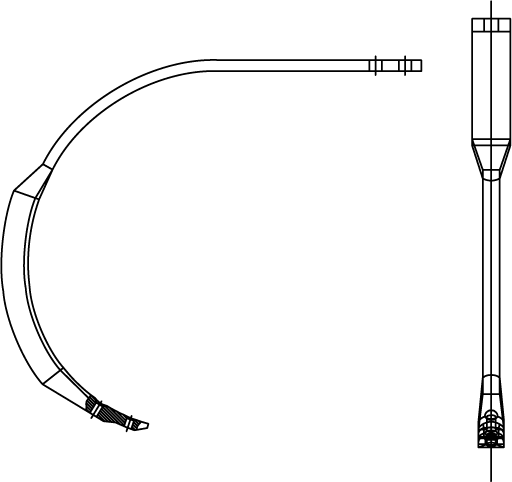

Tine 2811
Chisel tine 2811 manufactured in one piece, with 45x16 mm profile in the mounting area and 36x20 mm profile in the cultivator area. Made from special steel with high elasticity and ability to recover its original geometry. Manufacturing process that prevents the formation and propagation of micro-cracks. Painted with epoxy paint with high resistance to UV ray degradation.

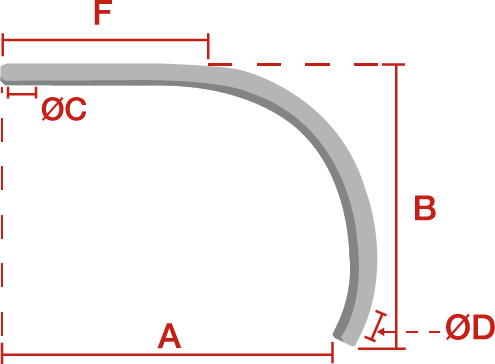

Main product specifications
| Ref. | G | A | B | C | D | E | F | Grs. | B | D |
|---|---|---|---|---|---|---|---|---|---|---|
| 2811-A | 45X16 | 254 | 408 | 17 | 45 | M10 | 100 | 3800 | 120 | 100 |
| 2811-B | 45X16 | 369 | 490 | 17 | 45 | M10 | 100 | 5300 | 120 | 100 |
D Made-to-order products.

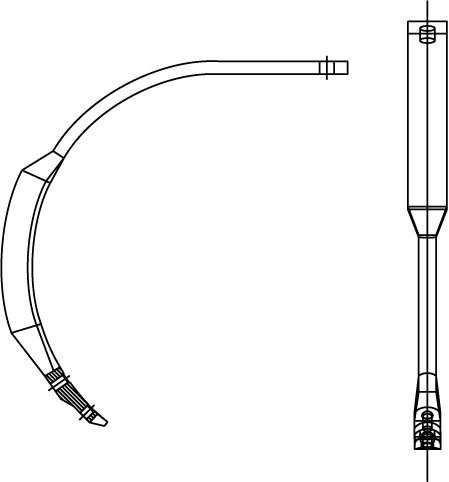

2811-A installed with an inclination of 20º
